Products Catalog>Cam action door closers>C7000 EN 3-6 Concealed
|
| |
|
| |

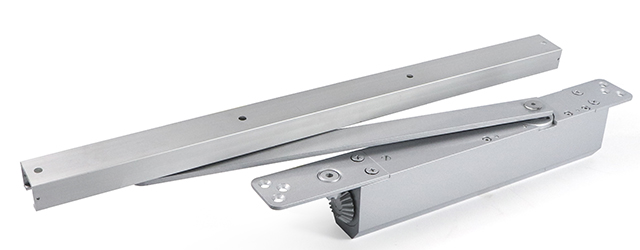

C7000 EN 3-6 Overhead Concealed cam action Door Closers |
|
|
|
| Door Closer Specification Sheet |
Comments |
| Product Model: |
C7000 |
|
| Product Type |
Concealed Cam Action Door Closer |
|
| Power Size |
EN3-6 adjustable |
|
| Arm Type |
Slide track |
|
| Power Adjustment Method |
By valve |
|
| Max Door Width (mm) |
1400 mm |
|
| Max Door Weight (Kgs) |
120 Kgs |
|
| Mechanism Type |
Cam Action |
|
| Adjustable Closing Speed |
Yes |
|
| Backcheck |
Optional |
|
| Delayed Action |
NO |
|
| Adjustable Latch Action |
Yes |
|
| EN 1154 Classification |
3 8 6/3 1 1 4 |
|
| Maximum Opening Angle |
120 Degrees |
|
| Fitting Application |
slide track arm |
|
| Mechanical Guarantee |
5 Years |
|
| Available Finishes |
Silver, Brown, White,Black |
|
|
  |
|
